Carbide Power Tool Holder CNC DIN2080 Rough And Semi Finishing
Ⅰ. Features And Advantages
1. Super rigidity and durability, with internal oil groove.
2. Internal quill rollers, clamping tools tightly from dropping.
3. Eliminating austenite vestigital Super subzero treatment, no
deformation.
4. High performance and cost effective.
5. Durable long life.
Ⅱ. Technical Parametes
Product Name | Power tool holder |
Spindle Type | NT50/DIN2080/ST |
Clamping Range | 6/8/10/12/16/20/25/32 mm Metric |
| 1/4, 5/16, 3/8, 1/2, 5/8, 3/4, 1'', 1-1/4'' Inch |
Runout | 0.003mm |
Processing Type | Rough and semi-rough machining |
Product Material | Special steel |
Hardness | HRC58~60° |
Ⅲ. Product Introduction
CAD
Standard Items
| Model Number | d1 | D1 | d1 | L1 | DRAW BOLT | Collet | Spanner |
| INCH | METRIC |
| NT30-C20-60 | 20 | 53 | 6-20 | 60 | 1/2"-12UNC | M12*1.75 | C20 | HS-C20 |
| NT40-32-70 | 32 | 70 | 6-32 | 70 | 5/8"-11UNC | M16*2.0 | C32 | HS-C32 |
| NT50-C32-90 | 32 | 70 | 6-32 | 90 | 1"-8UNC | M24*3.0 | C32 | HS-C32 |

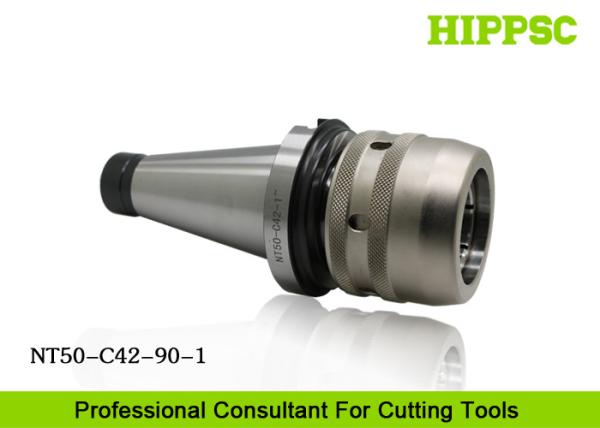

| NT50-C42-90 | 42 | 92 | 6-42 | 90 | 1"-8UNC | M24*3.0 | C42 | HS-C42 |
| NT60-C42-120 | 42 | 95 | 6-42 | 120 | 11/4"-7UNC | M30*3.5 | C42 | HS-C42 |
Collets
| Model No. | CLAMP RANGE | D | L |
| C20 | C20-6,8,10,12,16 | 26 | 55.1 |
| C25 | C25-6,8,10,12,16,20 | 30 | 63 |
| C32 | C32-6,8,10,12,16,20,25, C32-1/4,5/16,3/8,1/2,5/8,3/4,1" | 38 | 70 |
| C42 | C42-6,8,10,12,16,20,25,32,C42-1/4,5/16,3/8,1/2,5/8,3/4,1",1-1/4" | 48 | 75 |
Ⅳ. Overview for HIPPSC Products
1. NT Spindle Power Tool Holder Use for CNC Turning.
2. ER/SK/ Collet Tool Holdes.
3. Heat Shrinking/Expansion Tool Holders.
4. Threaded/Screw-in/Thread Screw Tool Holders.
5. Back Lock/Side Lock Tool Holders/Arbors/Shanks.
6. Mirror Finishing Type Tool Holders/Arbors/Shanks.
7. Morse Taper/Tapering Tool Holders/Arbors/Shanks.
8. Face Milling Adapters/Cutter And Inserts/Blades.
9. Torque Floating Tap/Tapping/Drilling Chuck.
10. Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Tester.
11. ER/SK/Hydraulic/Back lock/Torque tapping Collets.
12. Torque/ Round/Circle Spanners/Wrenches/Keys.
13. ER/SK/Back lock/Shrink fit Extension Rod/ Tool bit.
14. Edge finder/Tool Holder Tightening Fixture/Table.
15. Inserts/Milling/BoringInserts/PCBN/PCD Blade/Cutters/
16. Quick change Ball nose/Triangle/Pentagon/Horseshoe Tool bit.
17. Cutterhead/ Cutter Disk/Inserts Holder/Cutter bar.
18. BT/BBT/SK/CAT/HSK/ISO/NT/NBT/DIN Abor for CNC Machining Center
Ⅴ. Shipmen
All below transportation ways are available
Ⅵ. Packing
PE Bag.
Plastic Box
Carton Box.
Other Materials
Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.
If there is any special requirements of packing needed, it is
available to
be negotiated.
Ⅶ. Warehouse
- Abundant Stocks of Standard Products Guarantee On-time Delivery.
- All Materials and Products Must Be Inspected and Checked Strictly.
- IQC and OQC Operater Inspect Products' Quality and Specification.
- Using Professional Equipment and Gauge To Measure Technical
Parameters.
- We can accept that customer send a third party to do inspection at
site before shipment.
Ⅷ. Manufacturing and Sales Service
1. All Production with Professional and Precise Equipments Under
Experienced Workers.
2. OEM and ODM, All Products Are produced On Customer's
Requirements.
3. One-Stop Manufacturing and Sales Service, 12 Months
Warranty And Free Repair ServiceAre Provided.
