High Accuracy SK 40 Tool Holder Milling Cutters With Hook Spanner
Ⅰ. Features And Advantages
1. C Type Straight Collet, Provide aseismatic feature.
2. Runout 0.003mm at 4X D, good for heavy cutting.
3. Semi-finishing and fully finishing.
4. Grip force is excellent, guarantee surface quality.
Ⅱ. Technical Parametes
Product Name | Power Tool Holder |
Spindle Type | SK40 |
Clamping Range | 6/8/10/12/16/20/25 mm Metric |
| 1/4, 5/16, 3/8, 1/2, 5/8, 3/4, 1'' Inch |
Runout | 0.003mm |
Processing Type | Heavy Cut, Rough and semi-rough machining |
Product Material | Special steel |
Hardness | HRC58~60° |
Ⅲ. Product Introduction
Price List
| Model No. | d | D1 | D2 | L | Collet | Spanner |
| SK40-C20-90 | 20 | 53 | 63.55 | 90 | C20 | HS-C20 |
| SK40-C25-90 | 25 | 62 | 63.55 | 90 | C25 | HS-C25 |
| SK40-C32-105 | 32 | 70 | 63.55 | 105 | C32 | HS-C32 |
| SK40-C32-135 | 32 | 70 | 63.55 | 135 | C32 | HS-C32 |
| SK40-C32-165 | 32 | 70 | 63.55 | 165 | C32 | HS-C32 |
| SK50-C20-105 | 20 | 53 | 97.5 | 105 | C20 | HS-C20 |
| SK50-C20-135 | 20 | 53 | 97.5 | 135 | C20 | HS-C20 |
| SK50-C20-165 | 20 | 53 | 97.5 | 165 | C20 | HS-C20 |
| SK50-C25-105 | 25 | 62 | 97.5 | 105 | C25 | HS-C25 |
| SK50-C25-135 | 25 | 62 | 97.5 | 135 | C25 | HS-C25 |
| SK50-C25-165 | 25 | 62 | 97.5 | 165 | C25 | HS-C25 |
| SK50-C32-105 | 32 | 70 | 97.5 | 105 | C32 | HS-C32 |
| SK50-C32-135 | 32 | 70 | 97.5 | 135 | C32 | HS-C32 |
| SK50-C32-165 | 32 | 70 | 97.5 | 165 | C32 | HS-C32 |
| SK50-C42-115 | 42 | 92 | 97.5 | 115 | C42 | HS-C42 |
| SK50-C42-135 | 42 | 92 | 97.5 | 135 | C42 | HS-C42 |
| SK50-C42-165 | 42 | 92 | 97.5 | 165 | C42 | HS-C42 |

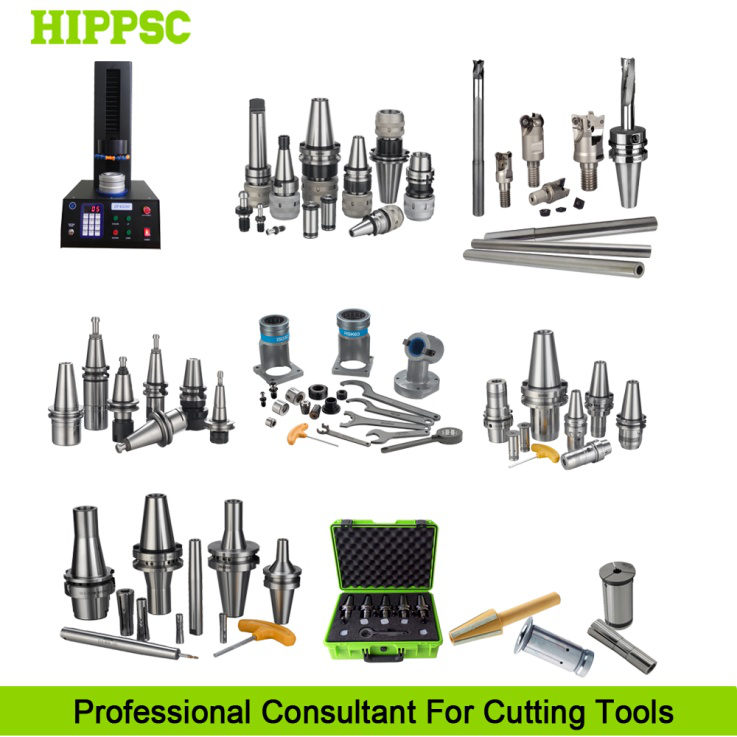

Ⅳ. Overview for HIPPSC Product
1. Power Tool Holder with C type Colle ,Hydraulic Grip Tool
Holder/Arbor,.
2. High Speed ER/SK/GER/GSK Tool Holder/Shank/Arbor.
3. Heat Shrink-Fit/Shrinking Tool Holders/Shanks/Arbors.
4. Threaded/Screw-on/Thread Screw Tool Holders/Arbors/Shank.
5. Back Lock/Side Lock Tool Holders.
6. Tool Holders/Arbors/Shanks for Mirror Finishing.
7. Morse Taper/Tapering Tool Holders/Shanks.
8. Face Milling Adapters/Tool Holders/Arbors/Shanks.
9. Drilling/Driller Chuck Holders/Tool Holders/Shanks/Arbor.
10. Torque Floating Tap/Tapping Chuck and Collet.
11. ER/SK/Hydraulic/Back lock/Floating tapping Collet
12. Torque/ Round/Circle Spanners/Wrenches/Keys.
13. ER/SK/Back lock/Shrink fit Extension Rod.
14. Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test
bar/Tester.
15. Edge finder/Tool Holder Tightening Fixture/Table.
16. Inserts/PCD/Milling/Boring/PCBN Inserts/Blade/Cutters/Tool bit.
17. Quick Change Ball nose/Triangle/Pentagon/Horseshoe Tool bit.
18. Cutterhead/ Cutter heard/bar, face milling cutter.
19. BT/BBT/SK/CAT/HSK/ISO/NT Tool Holders.
20. Indexable Tools.
Ⅴ. Shipmen
By Sea; By Air; By Train/Truck.
TNT, EMS, DHL, UPS, FedEx.
Ⅵ. Packing
PE Bag.
Plastic Box
Carton Box.
Other Materials
Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.
Ⅶ. Warehouse
1. Sufficient Inventory For All Standard Products to Guarantee
On-time Delivery.
2. All Materials and Products Must Be Inspected and Checked
Strictly and Carefully
By IQC and OQC Operater Before Being Shipped Out.
3. Using Special Equipment and Gauge To Check Technical Parameters.
Ⅷ. Manufacturing and Sales Service
1. Manufacturing with Professional and Precise Equipments Under
Experienced Workers.
2. OEM and ODM Service Are All Available Here, Produce To
Customer's Need/Requirement.
3. Professional Serving Team Provides One-Stop Considerate and
Satisfed Service To You.
