SK16 High Accuracy CNC Quality SK Collet For Clamping Straight
Shank Cutting Tools
Ⅰ. Features And Advantages
- Runout:≦0.005mm at 4X D
- Elastic shrinkage by 0.25mm when bore diameter <3mm.
- Elastic shrinkage by 0.5mm when bore diameter >3mm.
- Can clamp drilling, tapping, Milling cutter and reamer.
- Tolerance of Clamped cutting toolss within h7.
- High tenacity, high clamp force and nice balancing.
Ⅱ. Technical Parametes
Product Name | SK Collet |
Spindle Type | SK16-4 |
Runout | 0.005mm |
Clamping tools | Drilling, tapping, milling cutter, reamer |
Product Material | 65Mn |
Hardness | HRC42°~44° |
| Taper Type | Unilateral 4° |
Ⅲ. Product Introduction

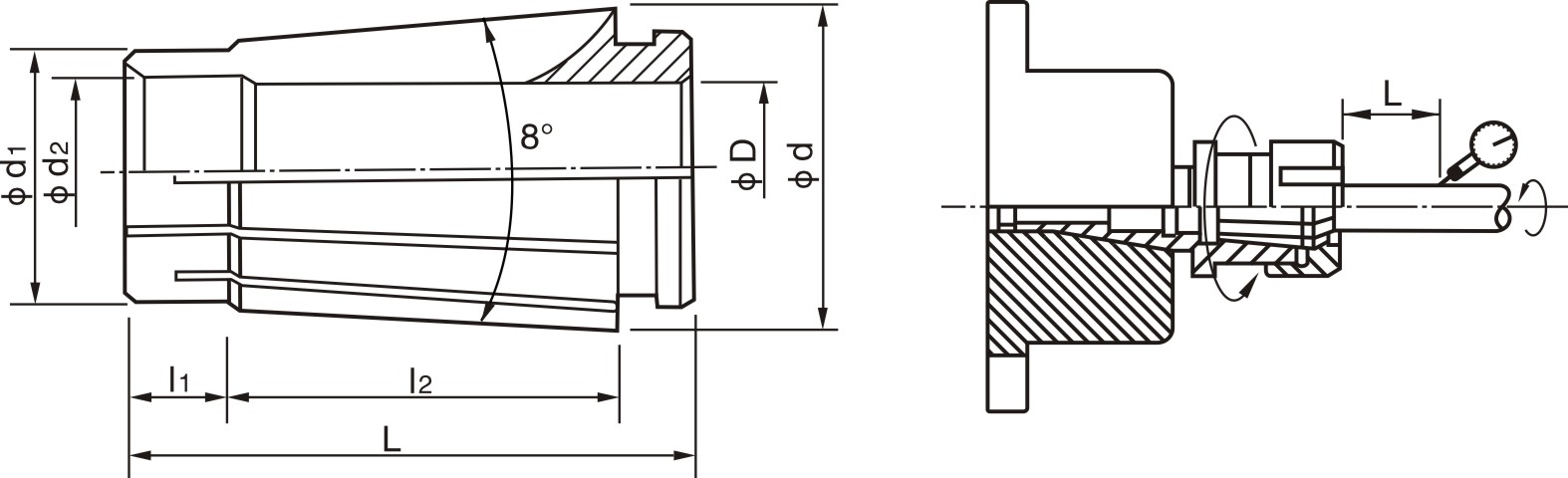

SK16 Collet
| Item Name | Model Number | Diameter |
SK16
Collet | SK16-3 | 2.75-3.0 |
| -3.5 | 3.0-3.5 |
| -4 | 3.5-4.0 |
| -4.5 | 4.0-4.5 |
| -5 | 4.5-5.0 |
| -5.5 | 5.0-5.5 |
| -6 | 5.5-6.0 |
| -6.5 | 6.0-6.5 |
| -7 | 6.5-7.0 |
| -7.5 | 7.0-7.5 |
| -8 | 7.5-8.0 |
| -8.5 | 8.0-8.5 |
| -9 | 8.5-9.0 |
| -9.5 | 9.0-9.5 |
| -10 | 9.5-10.0 |
| -10.5 | 10.0-10.5 |
| -11 | 10.5-11.0 |
| -11.5 | 11.0-11.5 |
| -12 | 11.5-12.0 |
| -12.5 | 12.0-12.5 |
| -13 | 12.5-13.0 |
| -13.5 | 13.0-13.5 |
| -14 | 13.5-14.0 |
| -14.5 | 14.0-14.5 |
| -15 | 14.5-15.0 |
| -15.5 | 15.0-15.5 |
| -16 | 15.5-16.0 |
Ⅳ. Overview for HIPPSC Products
CNC SK Collet For BT/SK/HSK/CAT/NT/NBT/BBT/ISO Tool Abor.
High Speed ER/SK/GER/GSK Tool Holder/Shank/Arbor for CNC Working.
Heat Shrink-Fit/Shrinking Tool Holders/Shanks/Arbors.
Threaded/Screw-on/Thread Screw Tool Holders/Arbors/Shank.
Back Lock/Side Lock Tool Holders/Arbors/Shanks.
Tool Holders/Arbors/Shanks for Mirror Finishing.
Morse Taper/Tapering Tool Holders/Shanks.
Face Milling Adapters/Tool Holders/Arbors/Shanks.
Drilling/Driller Chuck Holders/Tool Holders/Shanks/Arbor.
Torque Floating Tap/Tapping Chuck and Collet.
ER/SK/Hydraulic/Back lock/Floating tapping Collet
Torque/ Round/Circle Spanners/Wrenches/Keys.
ER/SK/Back lock/Shrink fit Extension Rod/ Tool bit.
Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test
bar/Tester.
Edge finder/Tool Holder Tightening Fixture/Table.
Inserts/PCD/Milling/Boring/PCBN Inserts/Blade/Cutters/Tool bit.
Quick Change Ball nose/Triangle/Pentagon/Horseshoe Tool bit.
Cutterhead/ Cutter heard/bar, face milling cutter.
BT/BBT/SK/CAT/HSK/ISO/NT Spinder Type Tool Holder/Shank/Arbor
Indexable Tools.
Ⅴ. Shipmen
By Sea; By Air; By Train/Truck.
TNT, EMS, DHL, UPS, FedEx.
Ⅵ. PackingPE Bag.
Plastic Box
Carton Box.
Other MaterialsRust Presensitive Oil.
Adhesive Tape.
Packing Belt.
Ⅶ. WarehouseSufficient Inventory For All Standard Products to Guarantee On-time
Delivery.
All Materials and Products Must Be Inspected and Checked Strictly
and Carefully
By IQC and OQC Operater Before Being Shipped Out.
Using Special Equipment and Gauge To Check Technical Parameters.
Ⅷ. Manufacturing and Sales ServiceManufacturing with Professional and Precise Equipments Under
Experienced Workers.
OEM and ODM Service Are All Available Here, Produce To Customer's
Need/Requirement.
Professional Serving Team Provides One-Stop Considerate and
Satisfying Service To You.
