Adjustable Power Tool Holder Internal Straight Sleeve , NT 30 Tool
Holders
Ⅰ. Features And Advantages
1. Internal oil groove, for the best combination of rigidity and durability.
2. Quill rollers, powerful clamping force, cutter doesn't drop.
3. Super subzero treatment to eliminate austenite vestigital,
avoiding deformation.
4. Cost saving and nice performance.
5. Long working life and long precesion.
Ⅱ. Technical Parametes
Product Name | Power tool holder |
Spindle Type | NT30/DIN2080/ST |
Clamping Range | 6/8/10/12/16 mm |
Runout | 0.003mm |
Processing Type | Rough and semi-rough machining |
Product Material | 20CrNiMo |
Hardness | HRC58~60° |
Ⅲ. Product Introduction
Price List

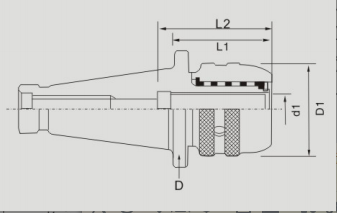

| Model Number | d1 | D1 | d1 | L1 | DRAW BOLT | Collet | Spanner |
| INCH | METRIC |
| NT30-C20-60 | 20 | 53 | 6-20 | 60 | 1/2"-12UNC | M12*1.75 | C20 | HS-C20 |
| NT40-32-70 | 32 | 70 | 6-32 | 70 | 5/8"-11UNC | M16*2.0 | C32 | HS-C32 |
| NT50-C32-90 | 32 | 70 | 6-32 | 90 | 1"-8UNC | M24*3.0 | C32 | HS-C32 |
| NT50-C42-90 | 42 | 92 | 6-42 | 90 | 1"-8UNC | M24*3.0 | C42 | HS-C42 |
| NT60-C42-120 | 42 | 95 | 6-42 | 120 | 11/4"-7UNC | M30*3.5 | C42 | HS-C42 |
Collet
| Model No. | Size | D | L |
| C20 | C20-6,8,10,12,16 | 26 | 55.1 |
| C25 | C25-6,8,10,12,16,20 | 30 | 63 |
| C32 | C32-6,8,10,12,16,20,25, C32-1/4,5/16,3/8,1/2,5/8,3/4,1" | 38 | 70 |
| C42 | C42-6,8,10,12,16,20,25,32,C42-1/4,5/16,3/8,1/2,5/8,3/4,1",1-1/4" | 48 | 75 |
Ⅳ. Overview for HIPPSC Products
1. DIN2080/NT/ST Power Tool Holder with straight collet.
2. ER/SK/MINI/ Tool Holder/Shank/Arbor for CNC High Speed
Processing.
3. Heat Shrink-Fit/Shrinking/Heat Expansion Tool
Holders/Shanks/Arbors.
4. Threaded/Screw-on/Thread Screw Tool Holders/Arbors/Shank.
5. Back Lock/Side Lock Tool Holders/Arbors/Shanks.
6. Mirror Finishing Type Tool Holders/Arbors/Shanks.
7. Morse Taper/Tapering Tool Holders/Arbors/Shanks.
8. Face Milling Adapters/Cutter And Inserts/Blades.
9. Drilling/Driller Chuck Holders/Tool Holders/Shanks/Arbor.
10. Torque Floating Tap/Tapping/Drilling Chuck.
11. Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test
bar/Tester.
12. ER/SK/Hydraulic/Back lock/Torque tapping Collets.
13. Torque/ Round/Circle Spanners/Wrenches/Keys.
14. ER/SK/Back lock/Shrink fit Extension Rod/ Tool bit.
15. Edge finder/Tool Holder Tightening Fixture/Table.
16. Inserts/Milling/BoringInserts/PCBN/PCD Blade/Cutters/Tool bit.
17. Quick change Ball nose/Triangle/Pentagon/Horseshoe Tool bit.
18. Cutterhead/ Cutter Disk/Inserts Holder/Cutter bar.
19. BT/BBT/SK/CAT/HSK/ISO/NT/NBT CNC Machine/Machining Center
Arbor.
Ⅴ. Packing
PE Bag.
Plastic Box
Carton Box.
Gift box can be provided on customer's request.
Other Materials
Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.
Plastic or wooden pallet.
Protective film.
Aibration-absorptive material
Ⅵ. Shipment
By Sea; By Air; By Train/Truck.
TNT, EMS, DHL, UPS, FedEx.
For Internationa Express, It usually takes 2~7days. It depends on which kind of
transportation method the buyer choose.
Ⅶ. Warehouse
1. Abundant Stocks of Standard Products Guarantee On-time Delivery.
2. All Materials and Products Must Be Inspected and Checked
Strictly and Carefully.
3. IQC and OQC Operater Inspect Products' Quality and
Specification.
4. Using Professional Equipment and Gauge To Check Technical
Parameters.
Ⅷ. Manufacturing and Sales Service
1. All Production are under Professional and Precise operation and
by experienced workers.
2. OEM/ODM Service, we always supply you with what you need.
3. One-Stop for all kinds of CNC tools and consultation.
4. Warranty with 12 Months, Free Repair Service.
