CNC Cutting Power Tool Holder High Precesion BT50 - C42 - 115
Ⅰ. Features And Advantages
1. Internal oil groove improves tool holder's rigidity well.
2. More quill rollers than other products, and higher Gripping
force, stop cutter from dropping.
3. Super subzero treatment to clear austenite vestigital, no
deformation happens.
4. Suitable for heavy duty maching, rough machining.
5. With straight shank collet, hook wrench as accessory.
Ⅱ. Technical Parametes
Product Name | Power Tool Holder |
Spindle Type | BT50 |
Clamping Range | /6/8/10/12/16/20/25/32mm, 1/4, 5/16, 3/8,1/2,5/8,3/4,1'', 1-1/4''. |
Runout | 0.003mm |
Processing Type | Rough and semi-rough machining |
Product Material | Special steel |
Hardness | HRC58~60° |
Ⅲ. Product Introduction
Price List
Model number | D | D1 | L1 | Collet | Spanner | Weight |
BT30-C20-75 | 20 | 53 | 75 | C20 | HS-C20 | 1.80 |
BT30-C25-80 | 25 | 62 | 80 | C25 | HS-C25 | 1.95 |
BT30-C32-100 | 32 | 70 | 100 | C32 | HS-C32 | 2.15 |
BT40-C20-80 | 20 | 53 | 80 | C20 | HS-C20 | 2.40 |
BT40-C25-80 | 25 | 62 | 80 | C25 | HS-C25 | 2.55 |
BT40-C32-105 | 32 | 70 | 105 | C32 | HS-C32 | 2.50 |
BT40-C32-135 | 135 | 2.80 |
BT40-C32-165 | 165 | 3.50 |
BT50-C20-105 | 20 | 53 | 105 | C20 | HS-C20 | 4.50 |
BT50-C25-105 | 25 | 62 | 105 | C25 | HS-C25 | 4.60 |
BT50-C32-105 | 32 | 70 | 105 | C32 | HS-C32 | 4.60 |
BT50-C32-135 | 135 | 5.60 |
BT50-C32-165 | 165 | 6.40 |
BT50-C42-115 | 45 | 92 | 115 | C42 | HS-C42 | 6.00 |
BT50-C42-135 | 135 | 7.20 |
BT50-C42-165 | 165 | 8.60 |

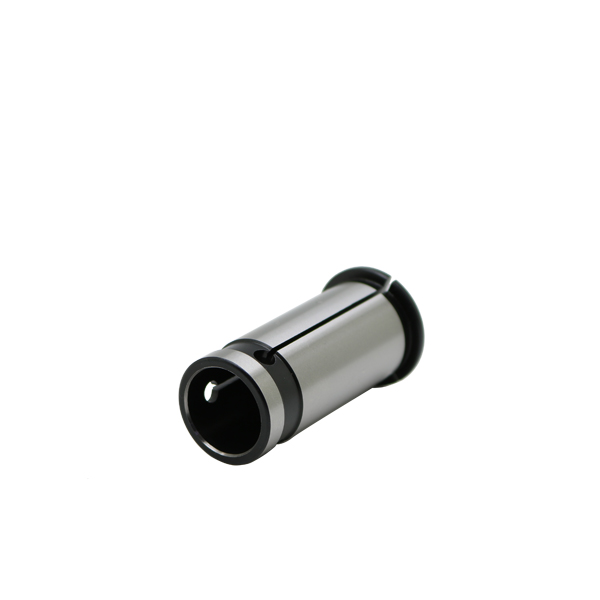

Collets
| Model No. | Size | D | L |
| C20 | C20-6,8,10,12,16 | 26 | 55.1 |
| C25 | C25-6,8,10,12,16,20 | 30 | 63 |
| C32 | C32-6,8,10,12,16,20,25, C32-1/4,5/16,3/8,1/2,5/8,3/4,1" | 38 | 70 |
| C42 | C42-6,8,10,12,16,20,25,32,C42-1/4,5/16,3/8,1/2,5/8,3/4,1",1-1/4" | 48 | 75 |
Ⅳ. Overview for HIPPSC Products
1. BT50 Power Tool Holder with C type Collet.
2. High Speed ER/SK/GER/GSK Tool Holder/Shank/Arbor for CNC
Working.
3. Heat Shrink-Fit/Shrinking Tool Holders/Shanks/Arbors.
4. Threaded/Screw-on/Thread Screw Tool Holders/Arbors/Shank.
5. Pull type/Side Lock Tool Holders/Arbors/Shanks.
6. Tool Holders/Arbors/Shanks for Mirror Finishing.
7. Morse Taper/Tapering Tool Holders/Shanks.
8. Face Milling Adapters/Tool Holders/Arbors/Shanks.
9. Drilling/Driller Chuck Holders/Tool Holders/Shanks/Arbor.
10. Torque Floating Tap/Tapping Chuck and Collet.
11. ER/SK/Hydraulic/Back lock/Floating tapping Collet
12. Torque/ Round/Circle Spanners/Wrenches/Keys.
13. ER/SK/Back lock/Shrink fit Extension Rod/ Tool bit.
14. Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test
bar/Tester.
15. Edge finder/Tool Holder Tightening Fixture/Table.
16. PCD/Milling/Boring/PCBN Inserts/Blade/Cutters/Tool bits.
17. Quick Change Ball nose/Triangle/Pentagon/Horseshoe Tool bits.
18. Cutter head/ Cutter heard/bar, face milling cutter.
19. BT/BBT/SK/CAT/HSK/ISO/NT Spinder Type Tool Holder/Shank/Arbor
20. Indexable Inserts.
Ⅴ. Shipmen
Conventional Transportation
By Sea; By Air; By Train/Truck.
TNT, EMS, DHL, UPS, FedEx.
Custome can choose their own forwarder to arrange picking up of
goods.
Ⅵ. Packing
PE Bag.
Plastic Box
Carton Box.
Other Materials
Rust Presensitive Oil.
Adhesive Tape.
Packing Belt.
Ⅶ. Warehouse
1. Sufficient Inventory For All Standard Products to Guarantee
On-time Delivery.
2. All Materials and Products Must Be Inspected and Checked
Strictly and Carefully
By IQC and OQC Operater Before Being Shipped Out.
3. Using Special Equipment and Gauge To Check Technical Parameters.
Ⅷ. Warranty Clauses
1. 12 Months of warranty from customer receive and confirm the
goods.
2. We provides replacement or repairing service for those defective
goods received by buyer.
3. Professional Serving Team Provides One-Stop Considerate and
Satisfying Service To You.
