Slim And Long High Precision CNC Cutting Tools For Face And Cavity
Machining
Ⅰ. Features And Advantages
- Runout<0.003mm.
- Non-eccentric fully round nut, fits for high speed precision
machining.
- Running on low noise and small wind resistance.
- High surface quality available.
- Wide application range.
Ⅱ. Technical Parametes
Product Name | GSK High Speed Tool Hoder |
Spindle Type | SK40 |
Clamping Range | 0.8mm~6mm |
Runout | 0.003mm |
Processing Type | High speed machining and finishing |
| Taper Standard | AT3 |
Hardness | HRC58~60° |
SK6 Collet List
| Item Name | Model Number |
Diameter |
SK6
Collet | SK6-0.8 | 0.75-0.8 |
| -1 | 0.9-1.0 |
| -1.25 | 1.15-1.25 |
| -1.5 | 1.3-1.5 |
| -1.75 | 1.55-1.75 |
| -2 | 1.8-2.0 |
| -2.25 | 2.05-2.25 |
| -2.5 | 2.3-2.5 |
| -2.75 | 2.55-2.75 |
| -3 | 2.8-3.0 |
| -3.5 | 3.0-3.5 |
| -4 | 3.5-4.0 |
| -4.5 | 4.0-4.5 |
| -5 | 4.5-5.0 |
| -5.5 | 5.0-5.5 |
| -6 | 5.5-6.0 |
Ⅲ. Product Introduction
Standard Items

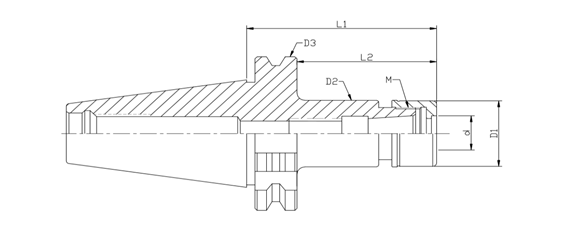

Model Number | d
Clamp Diameter | D1 | D2 | L1 | L2 | M | Nut | Collet | COLLET PULLER | Spanner |
| SK40-GSK06-75 | 2.0-6.0 | 19.5 | 20 | 75 | 52.7 | M15.5*1.0 | HN-GSK06 | SK06 | CX06 | GH19 |
| SK40-GSK06-90 | 2.0-6.0 | 19.5 | 20 | 90 | 67.7 | M15.5*1.0 | HN-GSK06 | SK06 | CX06 | GH19 |
| SK40-GSK06-120 | 2.0-6.0 | 19.5 | 20 | 120 | 97.7 | M15.5*1.0 | HN-GSK06 | SK06 | CX06 | GH19 |
| SK40-GSK10-75 | 3.0-10.0 | 27.1 | 27.6 | 75 | 52.7 | M21.5*1.0 | HN-GSK10 | SK10 | CX10 | GH27 |
| SK40-GSK10-90 | 3.0-10.0 | 27.1 | 27.6 | 90 | 67.7 | M21.5*1.0 | HN-GSK10 | SK10 | CX10 | GH27 |
| SK40-GSK10-120 | 3.0-10.0 | 27.1 | 27.6 | 120 | 97.7 | M21.5*1.0 | HN-GSK10 | SK10 | CX10 | GH27 |
| SK40-GSK10-150 | 3.0-10.0 | 27.1 | 27.6 | 150 | 127.7 | M21.5*1.0 | HN-GSK10 | SK10 | CX10 | GH27 |
| SK40-GSK13-75 | 3.0-13.0 | 33 | 33.5 | 75 | 52.7 | M27.0*1.0 | HN-GSK13 | SK13 | CX13 | GH33 |
| SK40-GSK13-90 | 3.0-13.0 | 33 | 33.5 | 90 | 67.7 | M27.0*1.0 | HN-GSK13 | SK13 | CX13 | GH33 |
| SK40-GSK13-150 | 3.0-13.0 | 33 | 33.5 | 150 | 127.7 | M27.0*1.0 | HN-GSK13 | SK13 | CX13 | GH33 |
| SK40-GSK16-75 | 3.0-16.0 | 40 | 40.5 | 75 | 52.7 | M32.0*1.0 | HN-GSK16 | SK16 | CX16 | GH40 |
| SK40-GSK16-90 | 3.0-16.0 | 40 | 40.5 | 90 | 67.7 | M32.0*1.0 | HN-GSK16 | SK16 | CX16 | GH40 |
| SK40-GSK16-120 | 3.0-16.0 | 40 | 40.5 | 120 | 97.7 | M32.0*1.0 | HN-GSK16 | SK16 | CX16 | GH40 |
| SK40-GSK16-150 | 3.0-16.0 | 40 | 40.5 | 150 | 127.7 | M32.0*1.0 | HN-GSK16 | SK16 | CX16 | GH40 |
| SK40-GSK20-75 | 4.0-20.0 | 48 | 48.5 | 75 | 52.7 | M40.0*1.0 | HN-GSK20 | SK20 | CX20 | GH48 |
| SK40-GSK20-90 | 4.0-20.0 | 48 | 48.5 | 90 | 67.7 | M40.0*1.0 | HN-GSK20 | SK20 | CX20 | GH48 |
| SK40-GSK20-120 | 4.0-20.0 | 48 | 48.5 | 120 | 97.7 | M40.0*1.0 | HN-GSK20 | SK20 | CX20 | GH48 |
| SK40-GSK20-150 | 4.0-20.0 | 48 | 48.5 | 150 | 127.7 | M40.0*1.0 | HN-GSK20 | SK20 | CX20 | GH48 |
| SK40-GSK25-90 | 6.0-25.0 | 55 | 55.5 | 90 | 67.7 | M45.0*1.5 | HN-GSK25 | SK25 | CX25 | GH55 |
| SK40-GSK25-120 | 6.0-25.0 | 55 | 55.5 | 120 | 97.7 | M45.0*1.5 | HN-GSK25 | SK25 | CX25 | GH55 |
| SK50-GSK10-105 | 3.0-10.0 | 27.1 | 27.6 | 105 | 87.2 | M21.5*1.0 | HN-GSK10 | SK10 | CX10 | GH27 |
| SK50-GSK10-135 | 3.0-10.0 | 27.1 | 27.6 | 135 | 112.7 | M21.5*1.0 | HN-GSK10 | SK10 | CX10 | GH27 |
| SK50-GSK13-105 | 3.0-13.0 | 33 | 33.5 | 105 | 87.2 | M27.0*1.0 | HN-GSK13 | SK13 | CX13 | GH33 |
| SK50-GSK13-135 | 3.0-13.0 | 33 | 33.5 | 135 | 112.7 | M27.0*1.0 | HN-GSK13 | SK13 | CX13 | GH33 |
| SK50-GSK13-165 | 3.0-13.0 | 33 | 33.5 | 165 | 142.7 | M27.0*1.0 | HN-GSK13 | SK13 | CX13 | GH33 |
| SK50-GSK16-105 | 3.0-16.0 | 40 | 40.5 | 105 | 87.2 | M32.0*1.0 | HN-GSK16 | SK16 | CX16 | GH40 |
| SK50-GSK16-135 | 3.0-16.0 | 40 | 40.5 | 135 | 112.7 | M32.0*1.0 | HN-GSK16 | SK16 | CX16 | GH40 |
| SK50-GSK16-165 | 3.0-16.0 | 40 | 40.5 | 165 | 142.7 | M32.0*1.0 | HN-GSK16 | SK16 | CX16 | GH40 |
| SK50-GSK16-200 | 3.0-16.0 | 40 | 40.5 | 200 | 177.7 | M32.0*1.0 | HN-GSK16 | SK16 | CX16 | GH40 |
| SK50-GSK20-105 | 4.0-20.0 | 48 | 48.5 | 105 | 87.2 | M40.0*1.0 | HN-GSK20 | SK20 | CX20 | GH48 |
| SK50-GSK20-135 | 4.0-20.0 | 48 | 48.5 | 135 | 112.7 | M40.0*1.0 | HN-GSK20 | SK20 | CX20 | GH48 |
| SK50-GSK20-165 | 4.0-20.0 | 48 | 48.5 | 165 | 142.7 | M40.0*1.0 | HN-GSK20 | SK20 | CX20 | GH48 |
| SK50-GSK20-200 | 4.0-20.0 | 48 | 48.5 | 200 | 177.7 | M40.0*1.0 | HN-GSK20 | SK20 | CX20 | GH48 |
| SK50-GSK25-105 | 6.0-25.0 | 55 | 55.5 | 105 | 82.7 | M45.0*1.5 | HN-GSK25 | SK25 | CX25 | GH55 |
| SK50-GSK25-135 | 6.0-25.0 | 55 | 55.5 | 135 | 112.7 | M45.0*1.5 | HN-GSK25 | SK25 | CX25 | GH55 |
| SK50-GSK25-165 | 6.0-25.0 | 55 | 55.5 | 165 | 142.7 | M45.0*1.5 | HN-GSK25 | SK25 | CX25 | GH55 |
| SK50-GSK25-200 | 6.0-25.0 | 55 | 55.5 | 200 | 177.7 | M45.0*1.5 | HN-GSK25 | SK25 | CX25 | GH55 |
Ⅳ. Overview for HIPPSC Products
1. SK40-GSK6-90 High Speed GSK Tool Holder with G2.5 25000RPM.
2. High Speed ER/SK/GER/GSK Tool Holder/Shank/Arbor for CNC
Working.
3. Heat Shrink-Fit/Shrinking Tool Holders/Shanks/Arbors.
4. Threaded/Screw-on/Thread Screw Tool Holders/Arbors/Shank.
5. Back Lock/Side Lock Tool Holders/Arbors/Shanks.
6. Tool Holders/Arbors/Shanks for Mirror Finishing.
7. Morse Taper/Tapering Tool Holders/Shanks.
8. Face Milling Adapters/Tool Holders/Arbors/Shanks.
9. Drilling/Driller Chuck Holders/Tool Holders/Shanks/Arbor.
10. Torque Floating Tap/Tapping Chuck and Collet.
11. ER/SK/Hydraulic/Back lock/Floating tapping Collet
12. Torque/ Round/Circle Spanners/Wrenches/Keys.
13. ER/SK/Back lock/Shrink fit Extension Rod/ Tool bit.
14. Nuts/Pull stud/Bolt Blind rivet/Spindle taper wiper/Test
bar/Tester.
15. Edge finder/Tool Holder Tightening Fixture/Table.
16. Inserts/PCD/Milling/Boring/PCBN Inserts/Blade/Cutters/Tool bit.
17. Quick Change Ball nose/Triangle/Pentagon/Horseshoe Tool bit.
18. Cutterhead/ Cutter heard/bar, face milling cutter.
19. BT/BBT/SK/CAT/HSK/ISO/NT Spinder Type Tool Holder/Shank/Arbor
20. Indexable Tools.
